Maximizing underground project value using Pseudoflow in Deswik's mine scheduling solution

In underground (UG) projects with complex operations and mining activities, a traditional Cut-off-Grade (COG) can be difficult to determine.

How do you ensure the economics of all mining excavations maximize your project's undiscounted cash flow?

How do you subsequently identify mining areas with higher profit margins and bring them forward in your Life of Mine (LOM) schedule to maximize the project's discounted cash flow?

Using Pseudoflow in Deswik.Sched, an algorithm similar to the Lerchs-Grossmann model used in Open Pit optimization, ORELOGY helped an underground mine in their economic analysis and scheduling phases of a UG plan to overcome these challenges.

With the application of Pseudoflow, the overall undiscounted Cash Flow for the Project improved by 5% and, more importantly, the Discounted Cash Flow (DCF) for the LOM increased by 12% (Discount rate 8%). Further, the DCF increased by 38% and 31% in the first three and five years of LOM respectively.

• 1.6 Mtpa with > 10-year mine life.
• 15+ orebodies.
• Remnant mining areas at shallow depth.
• New mining areas at >2000m below the surface.

• Some remnant stopes required longer rehab development.
• Some remnant stopes required additional rock-fill consolidation.
• Haulage costs varied greatly due to significant variation in elevation in each orebody.
• Due to these variations within and between mining areas, the traditional COG was difficult to determine.

• Multiple areas could start mining concurrently – with limited resources, which areas should start first
• Previous schedule sequencing was based on the ranking of individual orebodies with higher/lower priorities – how is priority determined when there is a large range of value within each orebody?

• Apply Pseudoflow in the economic analysis of the mining areas to maximize the project's net undiscounted cash flow.
• Use the Pseudoflow results to identify and prioritize the high profit margin mining areas and improve the project's Net Present Value (NPV).

• Pseudoflow is a type of network flow algorithm that is faster than the traditionally used LerchsGrossmann algorithm. It is a more efficient (processing time/power, and input parameter setup) method.
• It is used to find and select solutions in open pit and underground mine design and scheduling that prioritize profit improving NPV and cashflow.

• Evaluate all planned excavation economics to determine the "Ultimate UG Design".
• Generate a Free Cash Flow guidance using a revenue factor approach that can be used to identify the sequence priority for scheduling.

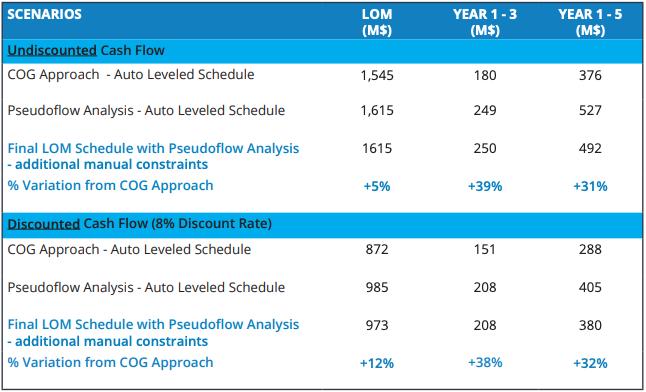

For the Project, an alternative outcome using a traditional COG methodology was generated to allow the results of the Pseudoflow approach to be assessed.

The key outcomes were:

• The overall Undiscounted Cash Flow improved by 5%.
• The Discounted Cash Flow (DCF) for the LOM increased by 12%.
• The DCF increased by 38% and 32% for the first three and five years for the LOM respectively.

• Quickly evaluating, comparing and selecting mine designs based on value.
• Enabling value as a scheduling parameter.
• Economic optimization in Life of Mine, ore reserve estimations and mine project studies.
• Sensitivity and scenario studies.
• Mine plans and schedules with large data sets and complex constraints.

Interested in learning more about Pseudoflow? Contact Deswik at deswik.com.
